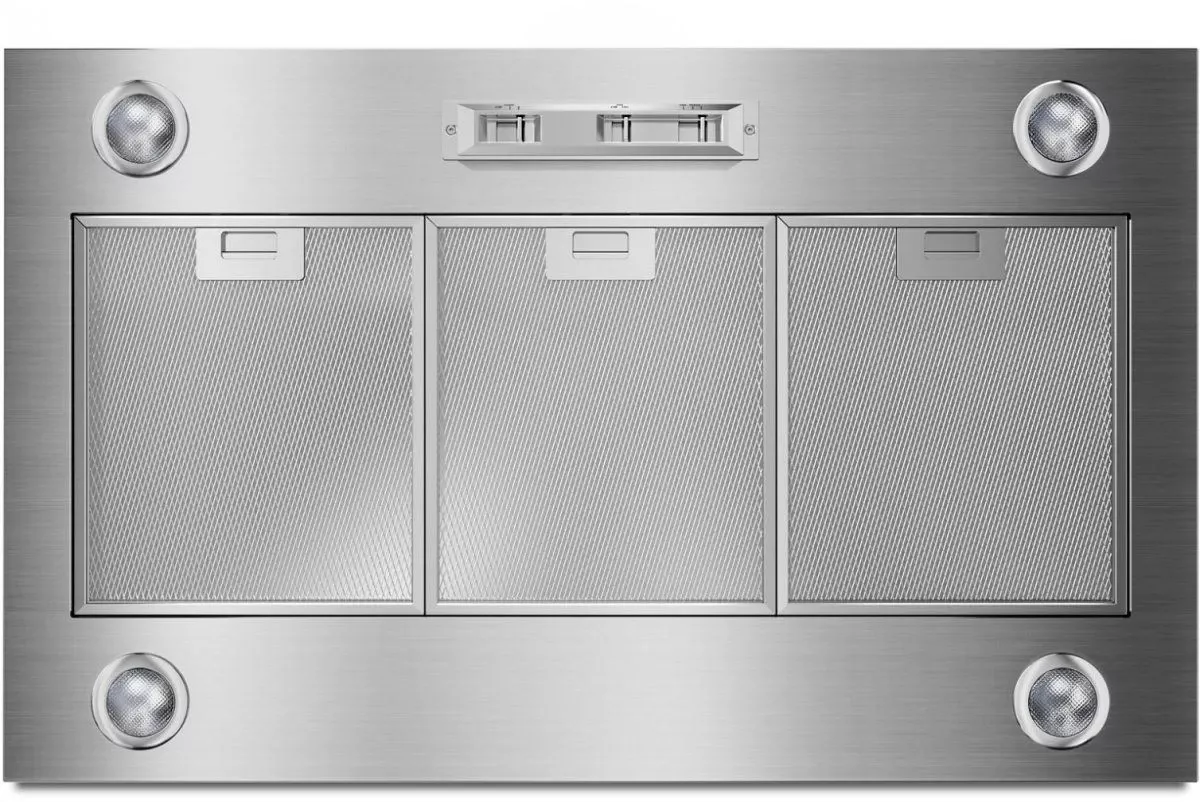

Product Overview
Three-Speed Fan
Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Requires 585 or 1170 CFM Motor Class Blower
Allowing you to customize a powerful ventilation system with your choice of commercial-style blowers.
105,000 BTU Rating
pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
Four LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Removable Filters
Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
KitchenAid® Custom Hood Liners
KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.
Useful Documents
WarrantyParts ListManualDimension Guide
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Trim Color | Stainless Steel |
| Range Hood Type | Insert |
| Ventilation Type | Ducted |
| Ventilation Direction | Vertical |
| Vent Location | Top |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 10 |
| Bulb Type | LED |
| Sones Rating | 1200 |
| Noise Level (Sones) | Standard – (High) |
| Maximum CFM | 1170 |
| Smart Compatible | No |
| Fan Speed Options | 3 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Width (in.) | 36 |
| Height (in.) | 11.5 |
| Depth (in.) | 22 |
| Product Weight (lbs.) | 28.22 |
| Made In | Mexico |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Manufacturer Warranty | 1 Year Limited Warranty |
| Voltage | 120 |
| Amp | 15 |
| Frequency | 60 |
Details |
|
| Number of Night Light Settings | 1 |
| Task Light Type | LED |
| Task Lighting | Yes |
Controls |
|
| Location of Controls | Hidden |
Dimensions |
|
| Maximum Height | 36.0 in |
| Minimum Height | 30.0 in |
| Cutout Depth | 22.0 in |
| Cutout Width | 36.0 in |
Features |
|
| Lighting Control Type | Slider |
Ventilation System |
|
| Exhaust Vent Location | Top |
| Sound Max Speed Sones | 1200.0 |
| Blower Type | Centrifugal |
| Filters | Dishwasher-Safe Grease Filters |
| Duct Direction | Vertical |
| Duct Outlet Size | 10 |
| Duct Type | Round |
| Number of Speeds | 3 |
