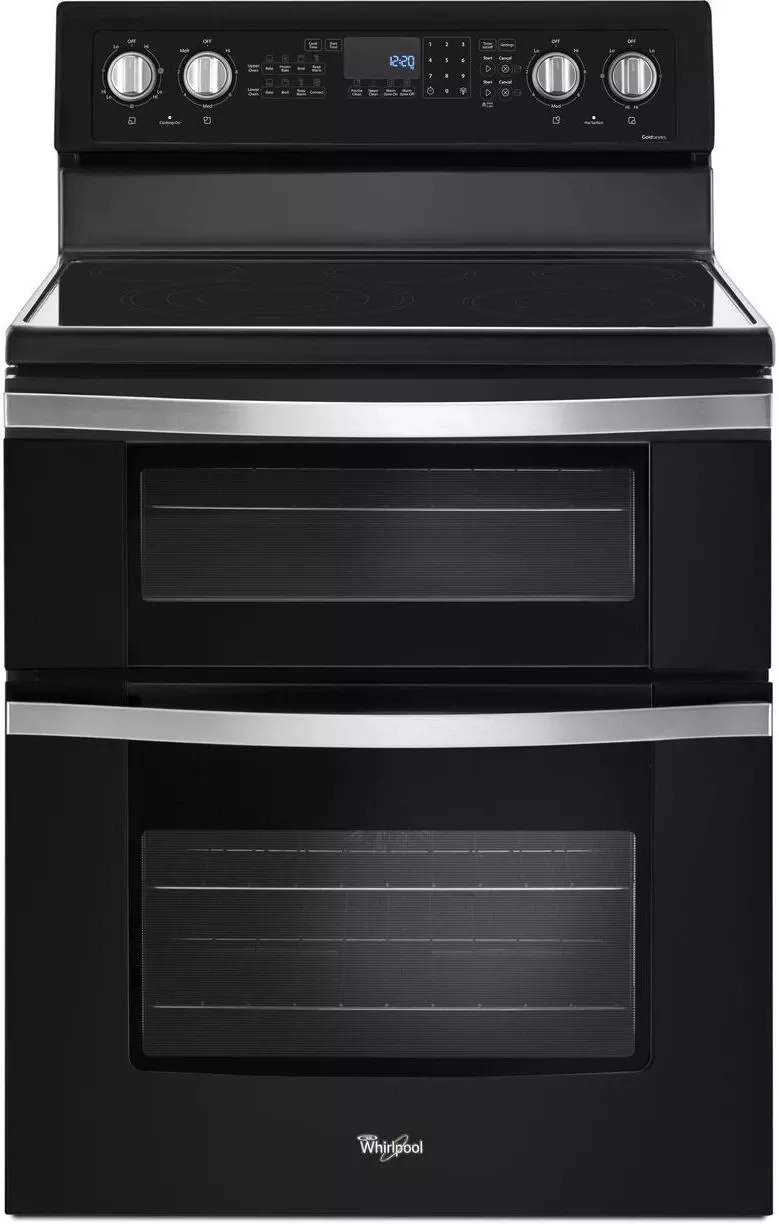

Product Overview
Frozen Bake™ Technology
Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
FlexHeat™ Triple Radiant Element
The FlexHeat™ triple radiant element is like having three elements in one. A 6″ inner ring is great for smaller pots and pans, while 9″ and 12″ outer rings make room to heat larger cookware.
Convection Conversion
Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.
True Convection with Third Heating Element
True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.
Temperature Sensor
A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Rapid Preheat (Lower Oven Only)
Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
Steam Clean Option
Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
6.7 Cu. Ft. Capacity
Easy-Wipe Ceramic Glass Cooktop
Hidden Bake Element
Dishwasher-Safe Knobs
Useful Documents
Use and careWarrantyQuick Start GuideDimension GuideCooking Safety TipsSspecification Sheet
Specifications
General Specs |
|
| Color | Black |
| Color/Finish Name | Black |
| Door Color | Black |
| Handle Color | Stainless Steel |
| Total Capacity (cu. ft.) | 6.7 |
| Total Upper Oven Capacity (cu. ft.) | 2.5 |
| Total Lower Oven Capacity (cu. ft.) | 4.2 |
| Number of Oven(s) | Double |
| Fuel Type | Electric |
| Door Panel Type | Glass |
| Range Type | Freestanding |
| Number of Elements/Burners | 5 |
| Cooktop Surface | Glass Top |
| Oven Cleaning Method | Steam Clean |
| Total Number Of Oven Racks | 3 |
| Total Number Of Rack Positions | 7 |
| Oven Features | Temperature Control, Sabbath Mode, Time Bake |
| Cooktop Features | Digital Display, Indicator Light – Hot Element On, Indicator Light – Hot Surface, Power Element |
| Induction Cooking | No |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 29.94 |
| Height (in.) | 47.13 |
| Depth (in.) | 26.13 |
| Depth w/Door Open 90 Degrees (in.) | 46 |
| Cut Out Width (in.) | 30.13 |
| Cut Out Height (in.) | 36 |
| Product Weight (lbs.) | 224 |
| Made In The USA | Yes |
| Made In | USA |
| ADA Compliant | No |
| Voltage | 240 |
| Frequency | 60 |
| Amp | 40 |
Certifications |
|
| ADA Compliant | No |
| UL | Yes |
Exterior Details |
|
| Door Type | Metal & Glass |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Knob Color | Color Coordinated/Black on Stainless |
| Knob Type | Weighted-Plastic |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large Lower Large Upper |
Cooktop Details |
|
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
Oven Cavity Details |
|
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 2,000 W Both |
| Broiler Element Power | 3,600 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 1,600 w |
| Convection Element Type | True |
| Convection Functions | Bake Lower, Broil Lower, Roast Lower |
| Door Removable | Yes |
| Hidden Bake Element | Yes Both |
| Interior Color | Grey |
| Number of Oven Lights | 1 |
| Oven Cleaning Type | Steam Clean |
| Oven Cooking System | Thermal Upper-Convection Lower |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard (Both) |
Additional Dimensions |
|
| Common Size | 30 in |
| Depth Closed Excluding Handles | 27.25 in |
| Lower Oven Interior Depth | 18.5 in |
| Lower Oven Interior Height | 16 in |
| Lower Oven Interior Width | 25 in |
| Upper Oven Interior Depth | 18.5 in |
| Upper Oven Interior Height | 9.25 in |
| Upper Oven Interior Width | 25 in |
Details |
|
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Configuration | Double Oven |
| Oven Selections | Audible Signal, Clock, Control Lock, Cook Time Indicator, Cook and Hold, Delay Start, Frozen Bake, Keep Warm Setting, Language Conversion, Melt, Rapid Preheat, Sabbath Mode, Timer, Warm Hold |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Double Oven |
Element/Burner Details |
|
| Center Rear Element-Burner Power | 100W |
| Center Rear Element-Burner Size | 6in |
| Center Rear Element-Burner Type | Radiant |
| Cooktop Element Style | Smoothtop |
| Left Front Element-Burner Power | 3,000W |
| Left Front Element-Burner Size | 12in./9in./6in. |
| Left Front Element-Burner Type | Triple |
| Left Rear Element-Burner Power | 300W/1300W |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Radiant Melt |
| Right Front Element-Burner Power | 3,000W |
| Right Front Element-Burner Size | 9in./6in. |
| Right Front Element-Burner Type | Radiant |
| Right Rear Element-Burner Power | 1,200W |
| Right Rear Element-Burner Size | 6in. |
| Right Rear Element-Burner Type | Radiant |
Controls |
|
| Display Color | Blue, Red |
| Electronic Display Type | Digital |
Electrical |
|
| Power Cord Included | No |
Refinements |
|
| Features | Frozen Bake™ Technology, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle |
| Range Features | Bladed Knob, Frozen Bake™ Technology, Self-Cleaning, True Convection, Whirlpool Handle |
