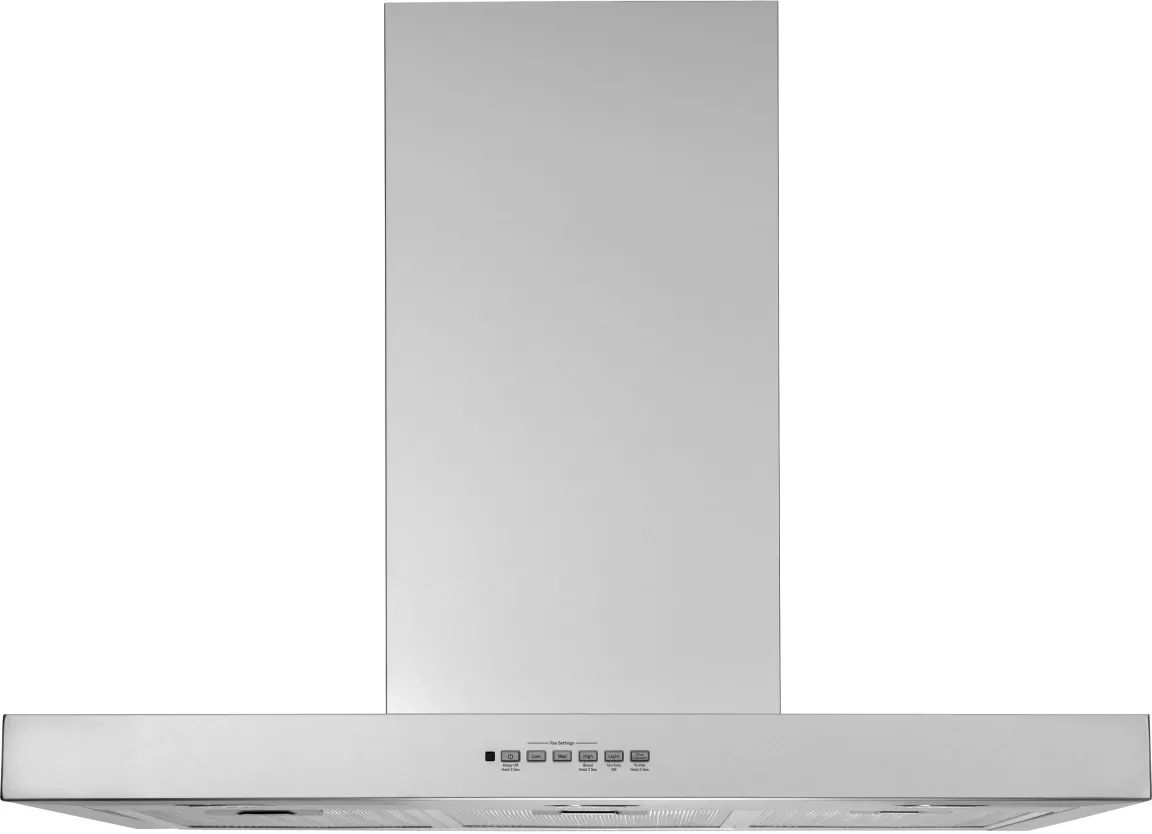

Product Overview
350-CFM blower
Maintain a fresh, welcoming kitchen environment with a powerful blower designed to remove smoke, grease, odor and moisture
Electronic backlit controls
Simple, intuitive controls are complemented by a sophisticated appearance that enhances the overall appeal of the hood
Convertible venting options
These sophisticated hoods are expertly engineered to provide a choice of recirculating or external venting
9-foot ceiling height
These handcrafted hoods include duct cover extensions that reach ceiling heights up to 9 feet and complete the look of modern kitchen designs
Chef connect
Enjoy unmatched convenience as the vents and surface lights on the hood are designed to automatically activate whenever the cooktop is turned on
Dishwasher-safe filter
Purposefully designed for ultimate convenience, these filters can be placed in the dishwasher for a thorough cleaning
Remote control included
Advanced technology and engineering allow you to activate and adjust the hood from anywhere in the kitchen
Useful Documents
Installation Instructions and ManualSpecification Sheet
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color-Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Duct Size (in.) | 8 |
| Bulb Type | LED |
| Sones Rating | 6.5 |
| Noise Level (Sones) | Standard – (High) |
| Maximum CFM | 350 |
| Smart Compatible | No |
| Fan Speed Options | 4 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Width (in.) | 35.88 |
| Height (in.) | 24 |
| Depth (in.) | 20 |
| Product Weight (lbs.) | 70 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Voltage | 120 |
| Amp | 5.3/15/20 |
| Frequency | 60 |
Features |
|
| Control Location | Front |
| Control Type | BacklitElectronic |
| Cooktop Lighting | 2 |
| Ducting | Vertical Only |
| Exhaust Options | RecirculatingVented to Outside |
| Fan Speed Control | 4-Speed |
| Filter Cleaning | Dishwasher Safe |
| Removable Filter | Grease & Charcoal included |
| Time Delay Shut-Off | Yes |
| CFM/ Sones Rating | 100/1.0 (Working Speed)200/ 3.0 (Medium Speed)350/3.1 (High Speed)350/6.5 (Boost Speed) |
| Light Controls | On/Off/Night |
| Optional Accessories | UX10DC8SLSS – 10′ High Ceiling Duct Cover Kit |
Economical / Quiet |
|
| Venting Type | Convertible |
Appearance |
|
| Blower / Light Switch Color | Backlit |
