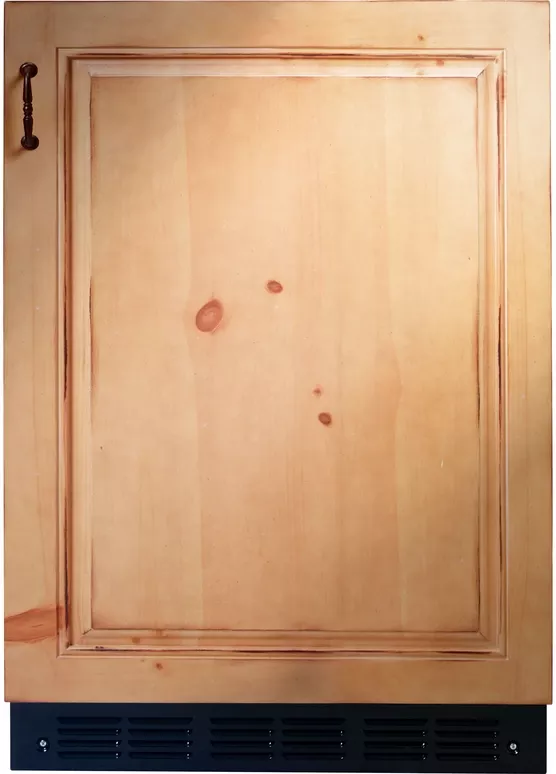

Product Overview
Removable spillproof glass shelves
Helps contain spills for ease of cleaning
Beverage shelf on full-extension slides
Holds up to five wine bottles or ten 12-oz. cans
Custom panel and handle required
Customer must choose a custom door panel and handle to complement their décor
Automatic icemaker on full-extension slides
Makes ice automatically to ensure a ready supply
Adjustable temperature control
Maintains a consistent temperature
LED lighting
Places contents into clear, brilliant view
Removable ice bin
Holds up to 8 lbs. of ice
Flush Installation
Allows near-seamless integration with surrounding cabinetry
Ice Scoop
Heavy duty scoop included
Useful Documents
Owners ManualEnergy GuideQuick SpecsInstallation Instruction
Specifications
General Specs |
|
| Color | Custom |
| Color/Finish Name | Panel Ready |
| Type of Refrigerator | Under The Counter Refrigerator |
| Installation Type | Built-In |
| Depth Type | Counter Depth |
| Number of Doors | 1 |
| Total Capacity (cu. ft.) | 4.25 |
| Door Panel Type | Panel |
| Number of Shelves | 3 |
| Door Swing Option | Right Hinge |
| Ice Maker | Yes |
| Custom Panel Ready | Yes |
| Locking Door | No |
| Light(s) | LED |
| Appliance Fit Width (in.) | 24 |
| Width (in.) | 23.63 |
| Depth (in.) | 23.25 |
| Height (in.) | 34.13 |
| Overall Height (in.) | 34.13 |
| Product Weight (lbs.) | 110 |
| ENERGY STAR Certified | Yes |
| Manufacturer Warranty | 2 Year Limited Parts and Labor |
| Voltage | 120 |
| Frequency | 60 |
| Amp | 15/20 |
APPEARANCE |
|
| Color Appearance | Custom Panel and Handle Required |
| Design Style | Custom Panel |
| Door Stops | 110 Degree |
| Door Style | Solid Door |
| Door Swing | Hinges on Right Only |
| Handle | Custom Handle Required |
| Installation | Built-In,Flush Appearance |
| Toe kick | Black installed, Stainless included |
ECONOMICAL / QUIET |
|
| Cabinet & Door Insulation | Foam |
FEATURES |
|
| Adjustable Temperature Control | Yes |
| Control Location | Front Top, Recessed |
| Control Type | Electronic,Digital Temperature Display |
| Custom Panel Ready | Flush Inset Panels,3/4-Inch Overlay Panels |
| Ice Scoop | Yes |
| Icemaker | With Full Extension Slides |
| Interior Lighting | LED |
| Leveling System | Leveling Legs |
| OU Certified | No |
| Product Type | Bar Refrigerator with Icemaker |
| Refrigerant Type | R600a |
| Sabbath Mode | Yes |
| Short Description | 24 Custom Panel Bar Refrigerator |
| Slide-Out Wine Shelf | 1 Half-size with wood front |
| Spillproof Glass Shelves | 2 encapsulated half-width, 1 encapsulated full-width |
WARRANTY |
|
| Labor Warranty | Limited 2-year entire appliance,Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 2-year entire appliance,Limited 5-year sealed refrigerating system |
