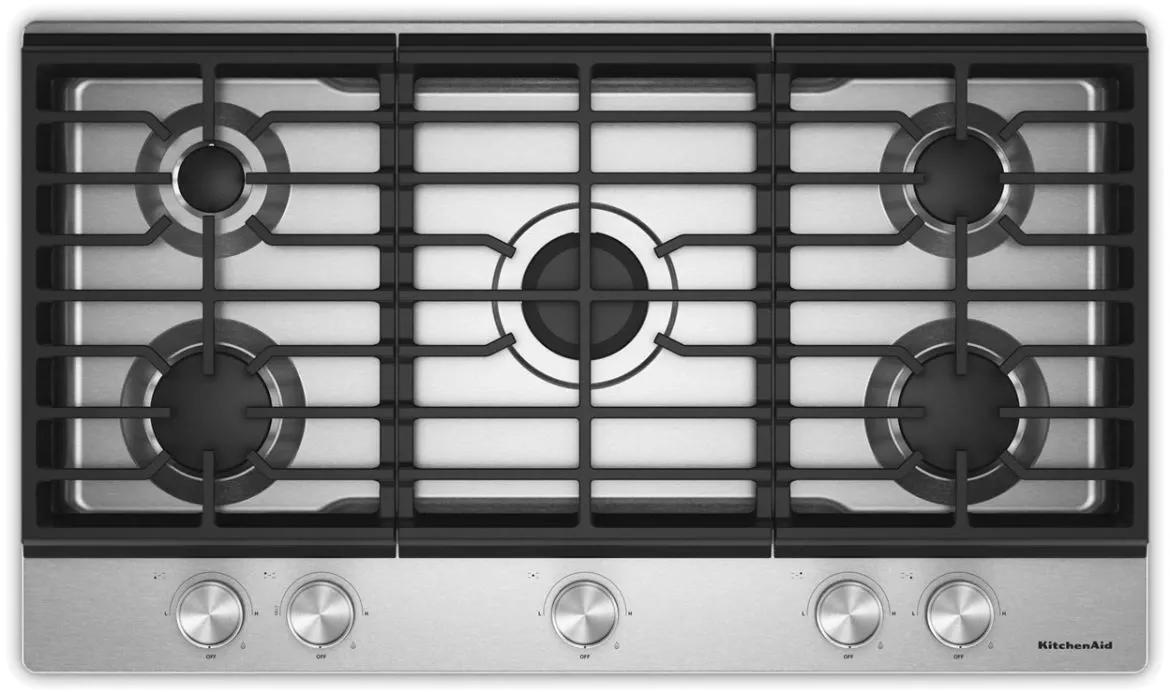

Product Overview
20,000 BTU Professional Dual Ring Burner
Allows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.
6,000 BTU Even-Heat™ Simmer Burner
A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
Electronic Ignition
Automatically lights burners so no standing pilot light is needed
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
CookShield Finish
protects the cooktop from stains that may occur with high temperature cooking. The permanent finish makes it easy to wipe clean without harsh chemicals so it looks clean, bright and beautiful even longer.
Multi-Finish Knobs
Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
LP Conversion Kit
Allows you to convert the cooktop so it can be used with LP gas.
Useful Documents
Owner’s ManualWarrantyVentilation Pairing GuideInstallation InstructionsInstruction SheetDimension GuideQuick Start Guide
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Fuel Type | Natural Gas |
| Burner Type | Sealed |
| Number of Elements/Burners | 5 |
| Cooktop Surface | Stainless Steel |
| Cooktop Surface Style | Burner Grate |
| Ignition Type | Spark |
| Grate Material | Cast Iron |
| Cooktop Features | Continuous Grate, Dual Element, LP Convertible |
| Propane Convertible | Yes |
| Downdraft Ventilation | No |
| Outdoor Approved | Yes |
| Commercial Use Approved | No |
| Appliance Fit Width (in.) | 36 |
| Width (in.) | 36 |
| Depth (in.) | 21 |
| Height (in.) | 3.69 |
| Cut Out Width (in.) | 35.63 |
| Cut Out Depth (in.) | 20 |
| Cut Out Height (in.) | 5.25 |
| ADA Compliant | Yes |
| Made In The USA | Yes |
| Made In | USA |
| Manufacturer Warranty | 1 Year Limited Parts and Labor |
| Voltage | 120 |
| Frequency | 60 |
| Amp | 15 |
Certifications |
|
| ADA Compliant | ADA Height and Side Reach Compliant |
| UL | Yes |
Exterior Details |
|
| Knob Color | Stainless Steel |
| Knob Type | Metal |
Cooktop Details |
|
| Combination Match with Oven | KOES527P, KOES530P, KOSC104FSS, KOSC504, KOSE500, KOSE507, KOSE900, KOST100, KOST107 |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless Steel |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Installs Over Built-In Oven | Yes |
Dimensions |
|
| Common Size | 36 in |
| Cutout Depth Max | 20 in |
| Maximum Height | 4.56 in |
Controls |
|
| Control Location | Front |
| Control Type | Knobs |
Details |
|
| Cooktop Configuration | All Burners |
| Digital Display | No |
| Fuel Type | Gas |
| LP Convertible | Yes – Kit Included |
| Power Outage Compatible | Yes |
Element/Burner Details |
|
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Center Element Burner Power | 20,000 BTU |
| Center Element Burner Type | Even Heat Dual |
| Center Rear Element-Burner Power | 20,000 BTU |
| Center Rear Element-Burner Type | Professional Dual Tier |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 10000 BTU |
| Left Rear Element-Burner Power | 6,000 BTU |
| Left Rear Element-Burner Type | Simmer |
| Power Boost | No |
| Right Front Element-Burner Power | 10,000 BTU |
| Right Rear Element-Burner Power | 7,000 BTU |
Ventilation Details |
|
| Downdraft Vent | No |
Grate Details |
|
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish |
Electrical |
|
| Power Cord Included | Yes |
Features |
|
| Cooktop Features | 20K BTU Dual-Ring Burner, ADA Compliant, Cookshield Finish, Even-Heat Melt Burner |
