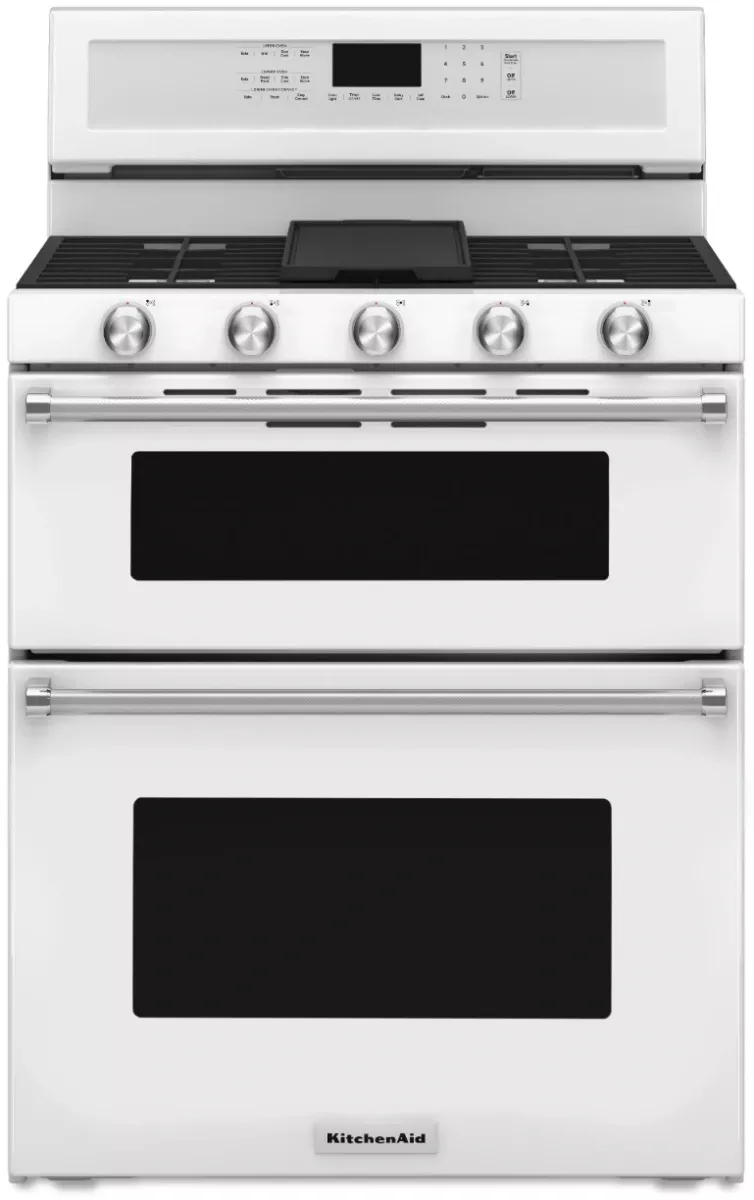

Product Overview
6.0 Cu. Ft. Total Capacity
Combined upper and lower oven capacities provide more room to cook multiple dishes at the same time.
Professionally-Inspired Design
combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
Even-Heat™ True Convection
features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
5 Burners (17k, 10k, 7.3k, 5k, 5k)
provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience.
SatinGlide® Rack
Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Hidden Bake
Covers up the baking element, making it easier to wipe away spills.
Useful Documents
ManualInstallation InstructionsWarrantyInstruction SheetDimension Guide
Specifications
General Specs |
|
| Color | White |
| Color/Finish Name | White |
| Door Color | White |
| Handle Color | Stainless Steel |
| Total Capacity (cu. ft.) | 6.0 |
| Total Upper Oven Capacity (cu. ft.) | 2.1 |
| Total Lower Oven Capacity (cu. ft.) | 3.9 |
| Number of Oven(s) | Double |
| Fuel Type | Natural Gas |
| Door Panel Type | Glass |
| Range Type | Freestanding |
| Number of Elements/Burners | 5 |
| Cooktop Surface Style | Burner Grate |
| Grate Material | Cast Iron |
| Oven Cleaning Method | Self Cleaning |
| Total Number Of Oven Racks | 3 |
| Total Number Of Rack Positions | 7 |
| Oven Features | Gliding/Roll Out Rack, Hidden Bake Element, Delay Bake/Start, Proofing Mode, Sabbath Mode, Broiler in Oven, LED Display |
| Cooktop Features | Continuous Grate, Dishwasher Safe Grates, LP Convertible, Digital Display |
| Air Fry | No |
| Induction Cooking | No |
| Convection Cooking | Yes |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 29.94 |
| Height (in.) | 47.38 |
| Depth (in.) | 28.5 |
| Depth w/Door Open 90 Degrees (in.) | 45.5 |
| Product Weight (lbs.) | 223.6 |
| Made In The USA | Yes |
| Made In | USA |
| Manufacturer Warranty | 1 Year Parts & Labor |
| ADA Compliant | No |
| Voltage | 120 |
| Frequency | 60 |
| Amp | 15 |
Dimensions |
|
| Depth With Door Open 90 Degree | 45.5″ |
| Lower Oven Capacity | 3.9 cu. ft. |
| Upper Oven Capacity | 2.1 cu. ft. |
| Depth Closed Including Handles | 28.5″ |
Appearance |
|
| Door Type | Glass Window |
| Handle Material | Metal |
| Handle Color | Stainless Steel |
| Oven Window Size | Large |
Oven Details |
|
| Automatic Convection Conversion Temperature Adjust | Yes |
| Broiler Location | Top of Oven |
| Convection Functions | Bake, Roast |
| Hidden Bake Element | Yes |
| Lower Oven Interior Depth | 18.75″ |
| Lower Oven Interior Width | 25″ |
| Number Of Oven Racks | 1 Upper-2 Lower |
| Oven Control Type | Electronic Touch |
| Oven Light Type | Incandescent |
| Power On Indicator Light | Yes |
| Upper Oven Interior Height | 7.38″ |
| Bake Element Power | 10000 BTU Upper-16000 BTU Lower |
| Convection Element Type | Single-Fan |
| Interior Color | Blue |
| Lower Oven Interior Height | 14.88″ |
| Number Of Oven Lights | 1 |
| Number Of Rack Guides | 2 Upper-5 Lower |
| Oven Cooking System | Thermal Upper-Convection Lower |
| Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
| Upper Oven Interior Depth | 19.25″ |
| Upper Oven Interior Width | 25″ |
| Oven Control Location | Backguard |
| Griddle | Included |
Cooktop Details |
|
| Cooktop Surface Material | Porcelain Coated Steel |
| Cooktop Control Location | Front |
| Cooktop Element Style | Sealed Burner |
| Grate Details | Dishwasher Safe, Matte Finish, Continuous, Cast Iron Grates |
| Cooktop Control Knob Type | Metal |
| Cooktop Control Type | Knobs |
| Number of Grates | 2 |
Electrical |
|
| Hz | 60 |
| Volts | 120 |
| Power Cord Included | Yes |
Controls |
|
| Knob Type | Metal |
| Knob Color | Stainless Steel |
