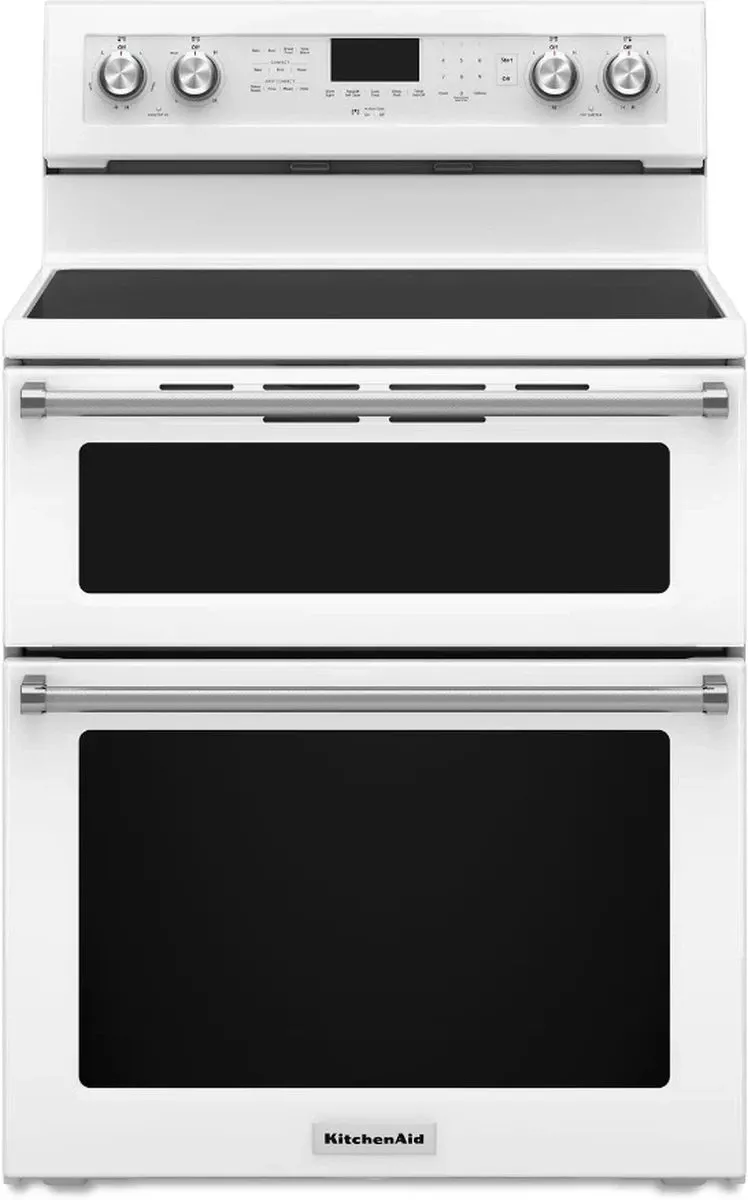

Product Overview
6.7 Cu. Ft. Total Capacity
Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
Professionally-Inspired Design
Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
Professionally-Inspired Design
combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
Even-Heat™ True Convection
features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
5 Cooking Elements Including a Warm Zone
Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
EasyConvect™ Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
SatinGlide® Rack
Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Hidden Bake
Covers up the baking element, making it easier to wipe away spills.
Triple-Ring Element
With three element sizes at one location, you get the versatility to match cooking surface to cookware size.
10″ Even-Heat™ Ultra Element
Delivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.
Useful Documents
Owners ManualControl GuideWarrantyDimension GuideInstallation InstructionQuick Start GuideVentilation Pairing GuideInstruction Sheet
Specifications
General Specs |
|
| Color | White |
| Color/Finish Name | White |
| Door Color | White |
| Handle Color | Stainless Steel |
| Total Capacity (cu. ft.) | 6.7 |
| Total Upper Oven Capacity (cu. ft.) | 2.5 |
| Total Lower Oven Capacity (cu. ft.) | 4.2 |
| Number of Oven(s) | Double |
| Fuel Type | Electric |
| Door Panel Type | Glass |
| Range Type | Freestanding |
| Number of Elements/Burners | 5 |
| Cooktop Surface | Glass Top |
| Oven Cleaning Method | Self Cleaning |
| Total Number Of Rack Positions | 7 |
| Oven Features | Broiler in Oven, Gliding/Roll Out Rack, Delay Bake/Start, Proofing Mode, Sabbath Mode, Hidden Bake Element, LED Display |
| Cooktop Features | Digital Display, Indicator Light – Hot Surface, Warming Zone |
| Air Fry | No |
| Induction Cooking | No |
| Convection Cooking | Yes |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 29.94 |
| Height (in.) | 47.38 |
| Depth (in.) | 28.5 |
| Depth w/Door Open 90 Degrees (in.) | 45 |
| Product Weight (lbs.) | 203.6 |
| Made In The USA | Yes |
| Made In | USA |
| Manufacturer Warranty | 1 Year Parts & Labor |
| ADA Compliant | No |
| Voltage | 208/240 |
| Frequency | 60 |
| Amp | 40 |
Dimensions |
|
| Depth With Door Open 90 Degree | 45″ |
| Depth Closed Including Handles | 28.5″ |
| Lower Oven Capacity | 4.2 Cu. Ft. |
| Lower Oven Interior Depth | 18.75″ |
| Lower Oven Interior Width | 25″ |
| Lower Oven Interior Height | 16″ |
| Upper Oven Interior Depth | 19.25″ |
| Upper Oven Interior Width | 25″ |
| Upper Oven Interior Height | 8.5″ |
Appearance |
|
| Door Type | Metal & Glass |
| Handle Material | Metal |
| Oven Window Size | Large |
Oven Details |
|
| Automatic Convection Conversion Temperature Adjust | Yes |
| Broiler Location | Top of Oven |
| Convection Functions | Bake, Broil, Roast |
| Hidden Bake Element | Yes |
| Number Of Oven Racks | 1 Upper-2 Lower |
| Oven Control Type | Electronic Touch |
| Oven Light Type | Incandescent |
| Power On Indicator Light | Yes |
| Bake Element Power | 2000W Both |
| Convection Element Type | Single-Fan |
| Interior Color | Blue |
| Number Of Oven Lights | 1 |
| Number Of Rack Guides | 2 Upper-5 Lower |
| Oven Cooking System | Thermal Upper-Convection Lower |
| Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
Cooktop Details |
|
| Cooktop Element Style | Radiant |
| Heating Element On Indicator Light | Yes |
| Cooktop Surface Material | Ceramic Glass |
| Hot Surface Indicator Light | Yes |
| Left Rear Element-Burner Type | Single |
| Center Rear Element-Burner Power | 100W |
| Right Rear Element-Burner Power | 1200W |
| Center Rear Element-Burner Size | 6″ |
| Right Front Element-Burner Power | 3200W |
Controls |
|
| Knob Color | Stainless Steel |
| Knob Type | Metal |
