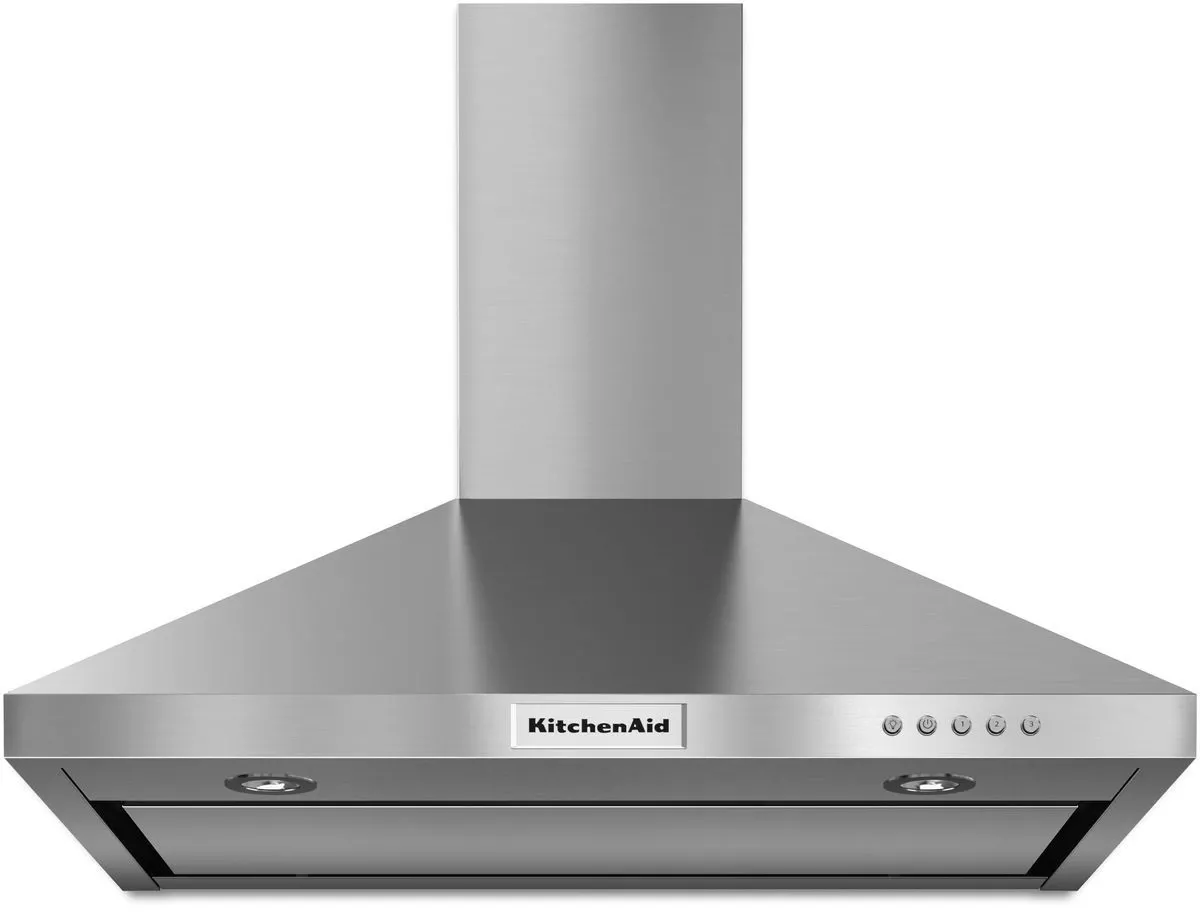

Product Overview
400 CFM/65K BTU Threshold
Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
Perimeter Ventilation
Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
LED Task Lights
Provide extra lighting over the cooking surface to help in the cooking process.
3-Speed Fan Control
Push-button controls make it easy to select and adjust fan speed depending on your ventilation requirements.
Whisper Quiet® System @ 39 dBA (0.4 sones) at Low Speed
Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 63 dBA (4.6 sones).
Dishwasher Safe Premium Mesh Filter
Help keep the kitchen environment fresh and also provide proper filtration of grease and odors to help reduce contact with ceilings and countertops.
Easy In-line Conversion
Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
Useful Documents
Installation and ManualWarrantyVentilation Pairing GuideInstallation InstructionDimension GuideInstruction SheetFeature Sheet
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Convertible (Both) |
| Ventilation Direction | Vertical |
| Duct Size (in.) | 6 |
| Bulb Type | LED |
| Sones Rating | 0.60 – 4.0 |
| Noise Level (Sones) | Moderate – (Medium) |
| Maximum CFM | 400 |
| Fan Speed Options | 3 |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 30 |
| Height (in.) | 28.88 |
| Depth (in.) | 20 |
| Made In | Mexico |
| ENERGY STAR Certified | No |
| Manufacturer Warranty | 1 Year |
| Voltage | 120 |
| Amp | 15 |
| Frequency | 60 |
| Positioning | Stationary |
Details |
|
| Task Light Type | LED |
| Task Lighting | Yes |
| Night Light | Yes |
| Number of Task Light Settings | 1 |
Refinements |
|
| Features | Perimeter Ventilation |
Ventilation System |
|
| Blower Type | Centrifugal |
| Fliters | Dishwasher-Safe Grease Filters |
| Duct Outlet Size | 6 |
| Duct Direction | Vertical |
| Duct Type | Round |
| Sound Min Speed dBA | Round |
| Sound Max Speed Sones | 4-3/5 |
| Number of Speeds | 3 |
| Sound Max Speed/Sound Max Speed dBA | 63-7/10 |
| Sound Min Speed Sones | 0-1/25 |
