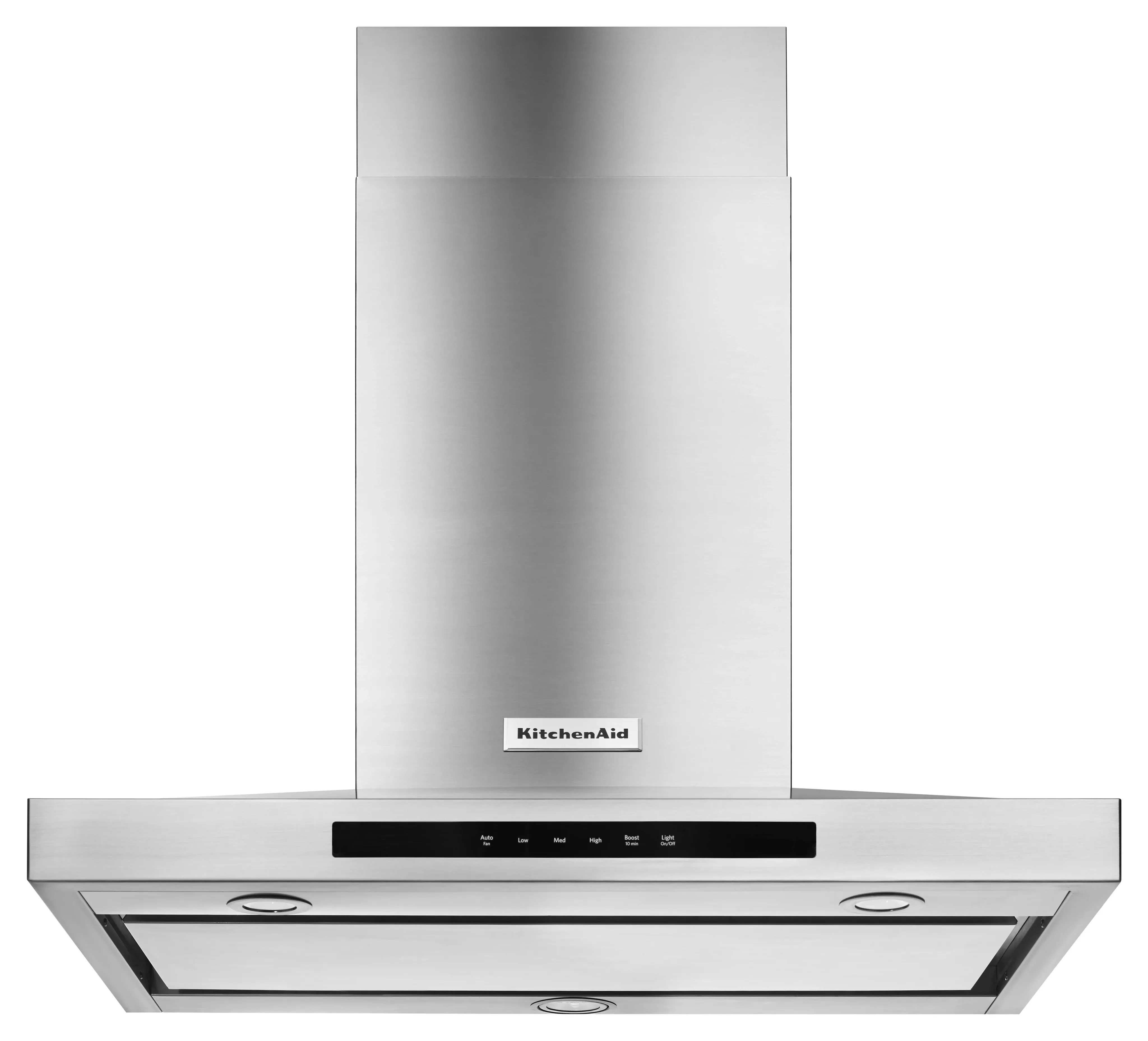

Product Overview
Perimeter Ventilation
Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
LED Task Lights
Provide extra lighting over the cooking surface to help in the cooking process.
Halogen Night Lights
Enhances the style of the ventilation system by providing soft, accent lighting in the kitchen.
3-Speed Electronic Glass Touch Control with Boost Function (10 Min.)
Provides electronic operation with visual feedback on settings and selections. Enhances performance when using high-temperature cooking techniques by providing a timed, short burst of high-speed ventilation to effectively filter steam, grease, and odors from the air.
Useful Documents
User GuideWarranty
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color-Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Convertible (Both) |
| Ventilation Direction | Vertical |
| Duct Size (in.) | 6 |
| Sones Rating | 5.4 |
| Noise Level (Sones) | Standard – (High) |
| Maximum CFM | 600 |
| Fan Speed Options | 3 |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 30 |
| Height (in.) | 24.63 |
| Depth (in.) | 19.68 |
| ENERGY STAR Certified | No |
| Positioning | Stationary |
Details |
|
| Night Light | Yes |
| Number of Night Light Settings | 1 |
| Number of Task Light Settings | 1 |
Ventilation System |
|
| Auto Function | Auto On and Speed Adjust |
| Blower Type | Centrifugal |
| Fliters | Dishwasher-Safe Grease Filters |
| Sound Max Speed Sones | 5-2/5 |
| Sound Min Speed Sones | 1-1/2 |
| Duct Direction | Vertical |
| Duct Type | Round |
| Number of Speeds | 3 |
| Sound Max Speed/Sound Max Speed DBA | 65 |
| Sound Min Speed DBA | 49-1/2 |
