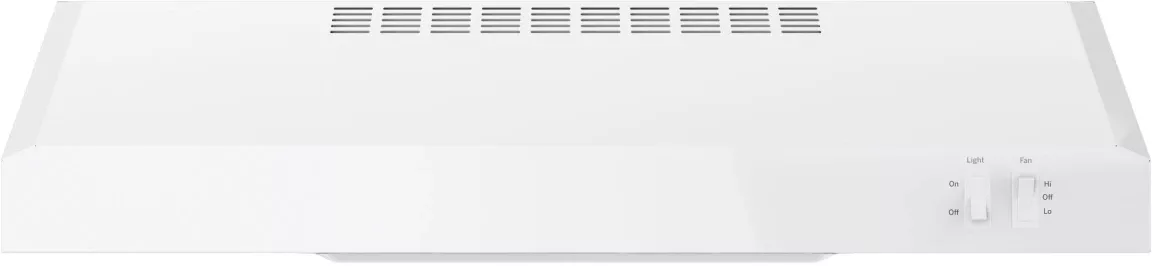

Product Overview
Easy installation
10 minutes or less by one person
Two-speed, 200-CFM venting system
Removes smoke, grease, odors and moisture
Front controls
Enjoy easy access and a subtle appearance
Cooktop lighting
Illuminate cooking space and surrounding surface – bulbs included
Convertible venting options
Select recirculating or external venting
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Appearance (Partially enclosed bottom)
Enjoy easy access to hood interior
Dishwasher safe filter
Perfect fit
Filters grease and is dishwasher-safe
Designed for a 24-inch wide space, this hood is ideal for smaller kitchens
Optional power cord kit
Install your hood using a standard 3-prong, grounded outlet with the optional Power Cord Connection Kit (JXHC1, sold separately).
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Wall Switch Option
Can be converted for operation with a wall switch, offering added flexibility and ADA-compliant convenience
Useful Documents
Wall Switch InstallationUse and Care ManualQuick SpecsInstallation InstructionsWarranty
Specifications
General Specs |
|
| Color | White |
| Color/Finish Name | White |
| Range Hood Type | Under Cabinet |
| Ventilation Type | Convertible (Both) |
| Vent Location | Custom |
| Duct Size (in.) | 7″ Round |
| Bulb Type | Incandescent |
| Sones Rating | 6.5 |
| Noise Level (Sones) | Standard – (High) |
| Maximum CFM | 200 |
| Range Hood Features | Light |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Fan Speed Options | 2 |
| Appliance Fit Width (in.) | 24 |
| Width (in.) | 23.88 |
| Height (in.) | 5.5 |
| Depth (in.) | 20 |
| Shipping Width (in.) | 27 |
| Shipping Height (in.) | 24 |
| Product Weight (lbs.) | 15 |
| ADA Compliant | No |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Voltage | 120 |
| Amp | 2.5 |
| Frequency | 60 |
| Positioning | Stationary |
Accessories |
|
| Optional Accessories | JXHC1 – Power Cord Kit |
Appearance |
|
| JXHC1 – Power Cord Kit | White |
| Color Appearance | White |
| Material | Metal |
Economical / Quiet |
|
| Venting Type | Convertible |
Other Features |
|
| Blower Type | Internal |
| CFM/ Sones Rating | 200/6.5 (High Speed) 130/5.0 (Low Speed) |
| Charcoal Filter | JXCF53 – Included |
| Control Location | Front |
| Control Type | Rocker Switch |
| Cooktop Lighting | 1 Incandescent |
| Ducting | Vertical or Horizontal; 7″ Round |
| Exhaust Options | Vented to Outside Recirculating |
| Fan Controls | Rocker |
| Fan Speed Control | 2-Speed |
| Filter Cleaning | Dishwasher Safe |
| Light Controls | On/Off |
| Max CFM | 200 |
| Product Type | Under Cabinet Hood |
| Removable Grease Filter(s) | Yes |
Power / Ratings |
|
| Amp Rating at 120V | 2.5 |
