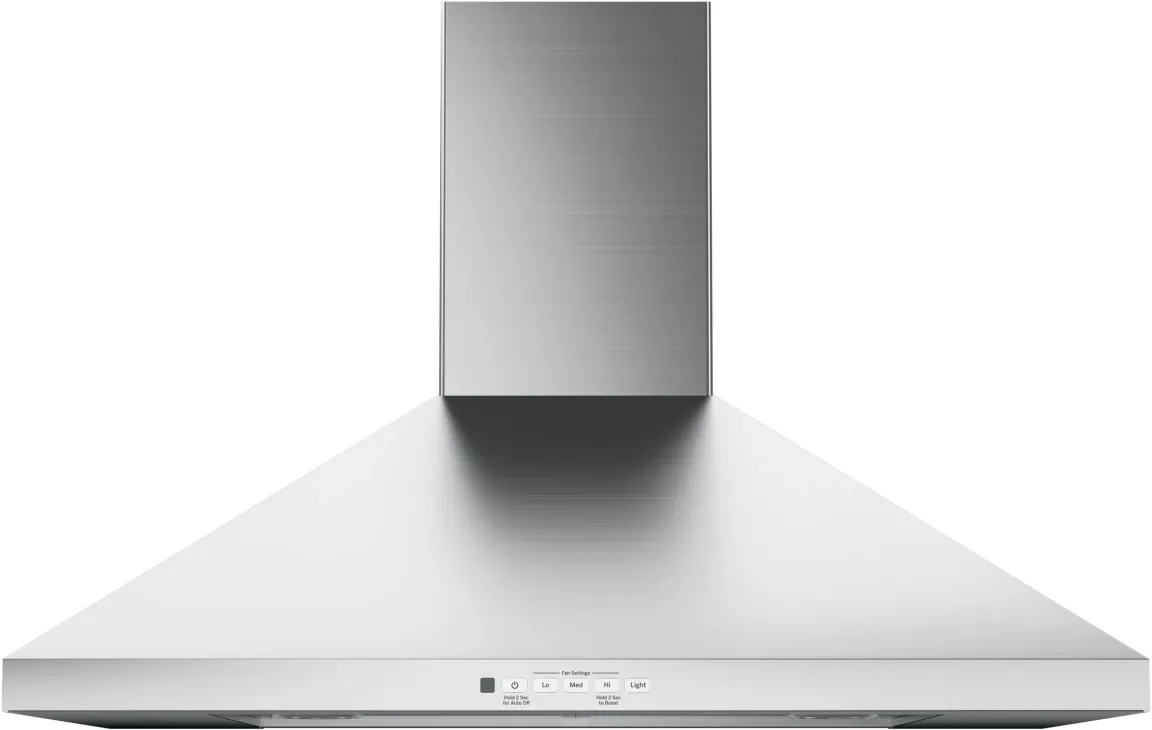

Product Overview
Easy do-it-yourself Installation
Can be installed either as a recirculating or external-venting hood
350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture
Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface
Night light
Keep a dim light on for visibility at all hours
Convertible venting options
Select recirculating or external venting
Optional remote control (JXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen
Auto-off
Set the vent hood to automatically shut off after 15 minutes
Dishwasher safe filter
Filters grease and is dishwasher-safe
Useful Documents
WarrantyOwner’s ManualQuick Specifications SheetSpecifications SheetInstallation Instructions
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Convertible (Both) |
| Duct Size (in.) | 6 |
| Bulb Type | Halogen |
| Sones Rating | 6.6 |
| Noise Level (Sones) | Standard – (High) |
| Maximum CFM | 350 |
| Range Hood Features | Automatic Shut Off |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Fan Speed Options | 4 |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 30 |
| Height (in.) | 9.88 |
| Depth (in.) | 18.5 |
| Height Above Cooktop | 24 |
| Height Above Cooktop Centimeter | 60.96 |
| Shipping Width (in.) | 19.8 |
| Shipping Height (in.) | 23.1 |
| Product Weight (lbs.) | 43 |
| ADA Compliant | No |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Voltage | 120 |
| Amp | 2.5 |
| Positioning | Stationary |
Construction |
|
| Exhaust: | Recirculating; Vented to Outside |
| Chimney: | Adjustable |
Dimensions |
|
| Shipping Weight: | 61 |
| Max Height Above Cooktop: | 36 |
| Min Height Above Cooktop: | 24 |
Display |
|
| Controls: | Digital |
General Features |
|
| Filter Type: | Metal Grease Filter |
| Cleanability: | Dishwasher Safe |
Other |
|
| Number of Lights: | 2 |
| Settings: | 3 |
| Air Mover(s) Speed: | 4 Speed |
