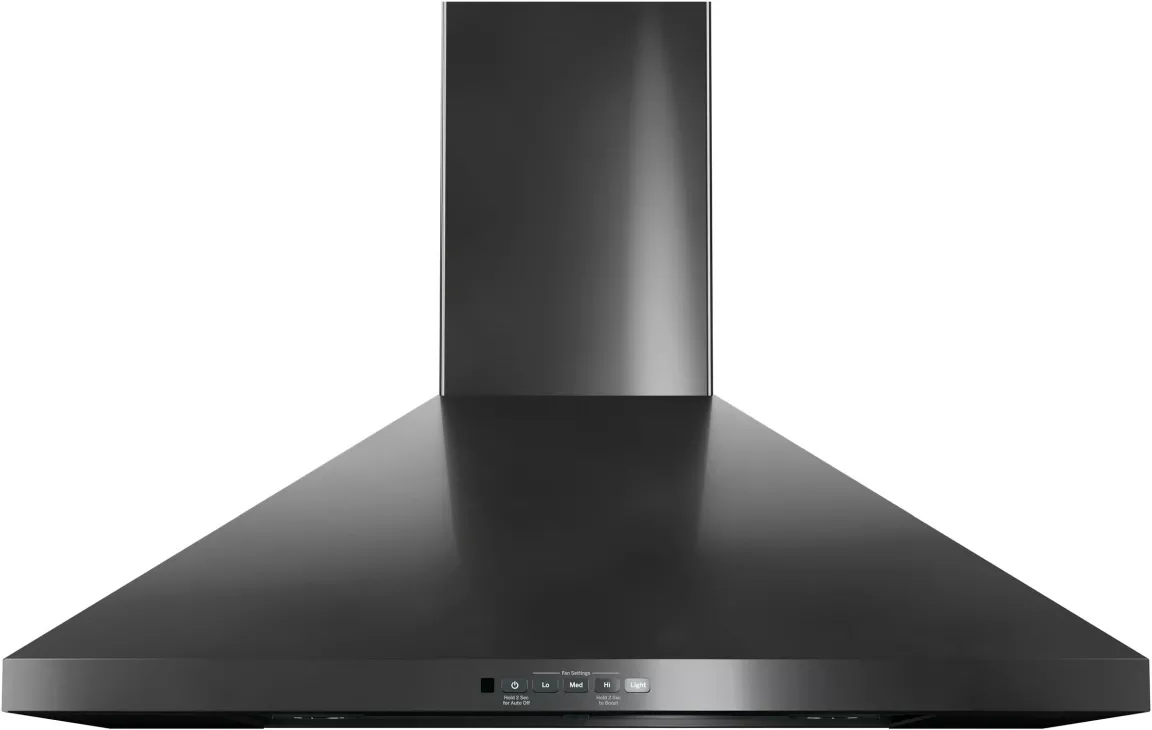

Product Overview
Easy do-it-yourself Installation
Can be installed either as a recirculating or external-venting hood
350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture
Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface
Night light
Provides a soft, dim light to enhance visibility and safety in the kitchen at any hour
Convertible venting options
Choose recirculating or external venting to adapt airflow for your kitchen’s specific ventilation setup
Optional remote control (UXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen
Auto-off
Set the vent hood to automatically shut off after 15 minutes
Dishwasher-safe filter
Durable, easy-to-remove filter captures grease and cleans up effortlessly in the dishwasher
Useful Documents
Owner’s ManualWarrantyUse and Care ManualQuick SpecsInstallation Instructions
Specifications
General Specs |
|
| Color | Black Stainless Steel |
| Color/Finish Name | Fingerprint Resistant Black Stainless |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Convertible (Both) |
| Ventilation Direction | Vertical |
| Duct Size (in.) | 6 |
| Bulb Type | Halogen |
| Sones Rating | 6.6 |
| Noise Level (Sones) | Standard – (High) |
| Maximum CFM | 350 |
| Range Hood Features | Automatic Shut Off |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Fan Speed Options | 4 |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 30 |
| Height (in.) | 9.88 |
| Depth (in.) | 18.5 |
| Shipping Width (in.) | 19.8 |
| Shipping Height (in.) | 23.1 |
| Product Weight (lbs.) | 43 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Voltage | 120 |
| Amp | 2.5 |
| Frequency | 60 |
Accessories |
|
| Optional Accessories | JXCF72 – Charcoal Filter UXDC53BJTS – 10 (ft.) Ceiling Duct Cover Kit UXDC72BJTS – 9 (ft.) Ceiling Duct Cover Kit UXRC70 – Remote Control |
Appearance |
|
| Blower / Light Switch Color | Backlit |
| Color Appearance | Fingerprint Resistant Black Stainless |
| Material | Metal |
Economical / Quiet |
|
| Venting Type | Convertible |
Additional Features |
|
| 6″ Round Duct | Yes |
| Blower Type | Internal |
| CFM/ Sones Rating | 350/6.6 (Boost Speed) 340/5.1 (High Speed) 150/1.0 (Working Speed) |
| Control Location | Front |
| Control Type | Electronic Touch Backlit |
| Cooktop Lighting | 1 Halogen |
| Ducting | Vertical Only |
| Exhaust Options | Vented to Outside Recirculating |
| Fan Speed Control | 4-Speed |
| Filter Cleaning | Dishwasher Safe |
| Light Controls | On/Off/Night |
| Max CFM | 350 |
| Product Type | Designer Hood |
| Remote Control | Optional (UXRC70) |
| Removable Grease Filter(s) | Yes |
