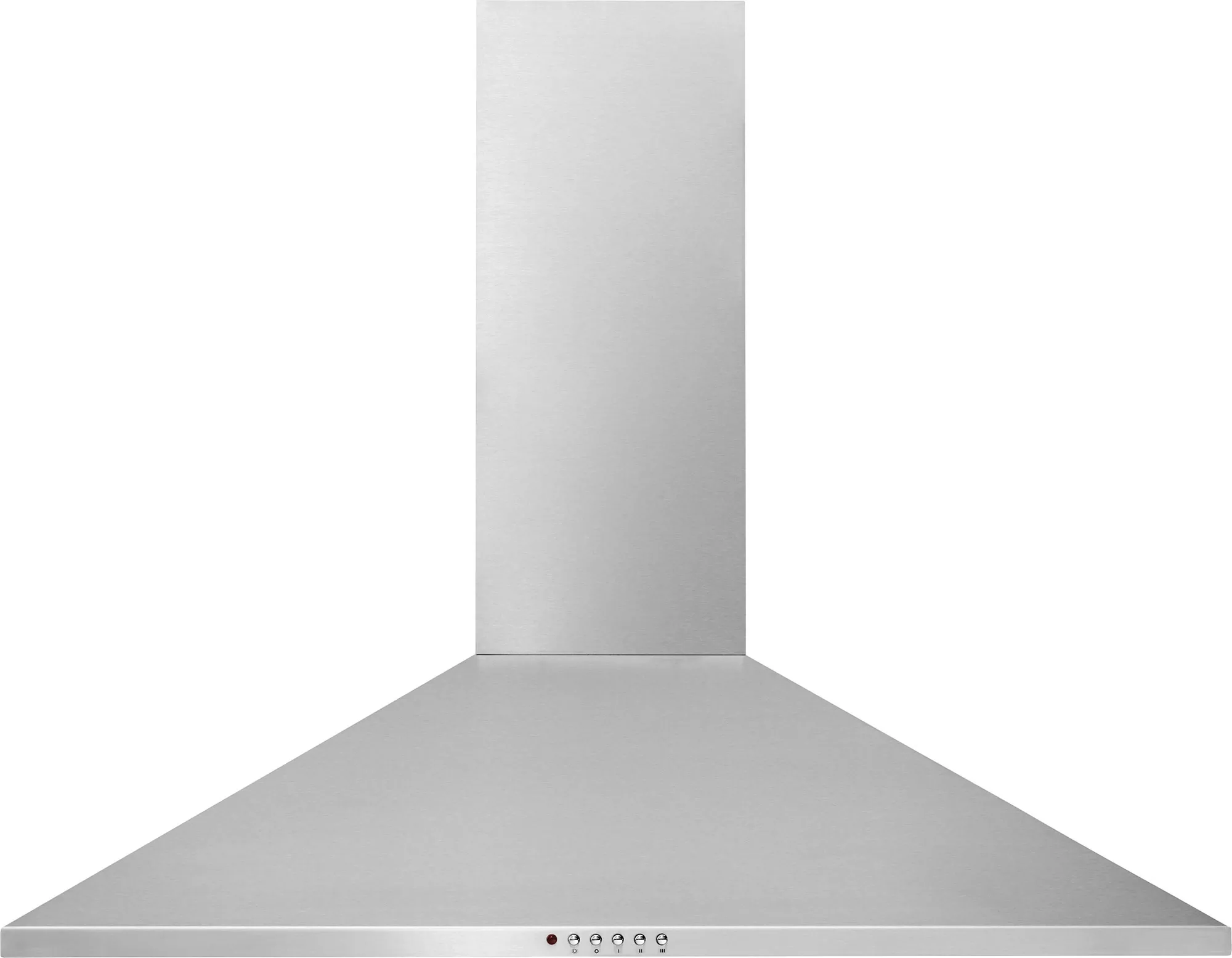

Product Overview
Dual-Centrifugal Fans
Move air quietly and efficiently — up to 400 cu. ft. of air per minute
Halogen Lighting
For bright illumination of the cooktop surface
Washable Filters
Dishwasher safe for easy cleaning. The aluminum filter provides strength and durability not found in foam filters
Useful Documents
Right to RepairComplete Owner’s GuideInstallation InstructionsSpecification Sheet
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ductless |
| Duct Size (in.) | 6 |
| Bulb Type | Halogen |
| Sones Rating | 7.94 |
| Noise Level (Sones) | Standard – (High) |
| Maximum CFM | 400 |
| Smart Compatible | No |
| Fan Speed Options | 3 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Width (in.) | 35.38 |
| Height (in.) | 45 |
| Depth (in.) | 19.69 |
| Product Weight (lbs.) | 30.4 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Manufacturer Warranty | 1 Year |
| Voltage | 120 |
| Amp | 15 |
| Frequency | 60 |
| Positioning | Stationary |
Construction |
|
| Exhaust Duct: | Convertible |
| Chimney: | Fixed |
| Air Discharge: | Vertical |
| Blower Type: | Centrifugal |
| Sound Level (dBA): | 69.9 |
| Sones Rating: | 7.9 |
Display |
|
| Controls: | Electronic Push Button |
General Features |
|
| Filter Type: | 2 Dishwasher Safe Grease Filters |
Other |
|
| Number of Lights: | 2 |
| Fan Speeds: | 3 |
Styling |
|
| Style: | Stainless Steel/ Chimney |
