Product Overview
Dual-Centrifugal Fans
Move air quietly and efficiently — up to 400 cu. ft. of air per minute.
Halogen Lighting
For bright illumination of the cooktop surface.
Washable Filters
Dishwasher safe for easy cleaning. The aluminum filter provides strength and durability not found in foam filters.
Useful Documents
Right to RepairComplete Owner’s GuideInstallation InstructionsWiring DiagramSpecification Sheet
Specifications
General Specs |
|
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ductless |
| Ventilation Direction | Vertical |
| Duct Size (in.) | 6 |
| Bulb Type | Halogen |
| Sones Rating | 6.54 |
| Noise Level (Sones) | Standard – (High) |
| Maximum CFM | 400 |
| Smart Compatible | No |
| Fan Speed Options | 3 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 29.88 |
| Height (in.) | 43.91 |
| Depth (in.) | 19.69 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Manufacturer Warranty | 1 Year |
| Voltage | 120 |
| Amp | 15 |
| Frequency | 60 |
| Positioning | Stationary |
Construction |
|
| Exhaust Duct: | Convertible |
| Chimney: | Fixed |
| Air Discharge: | Vertical |
Display |
|
| Controls: | Electronic Push Button |
General Features |
|
| Filter Type: | 2 Dishwasher Safe Grease Filters |
Other |
|
| Number of Lights: | 2 |
| Blower Type: | Centrifugal |
| Fan Speeds: | 3 |
| Sound Level (dBA): | 67.1 |
| Sones Rating: | 6.5 |
Styling |
|

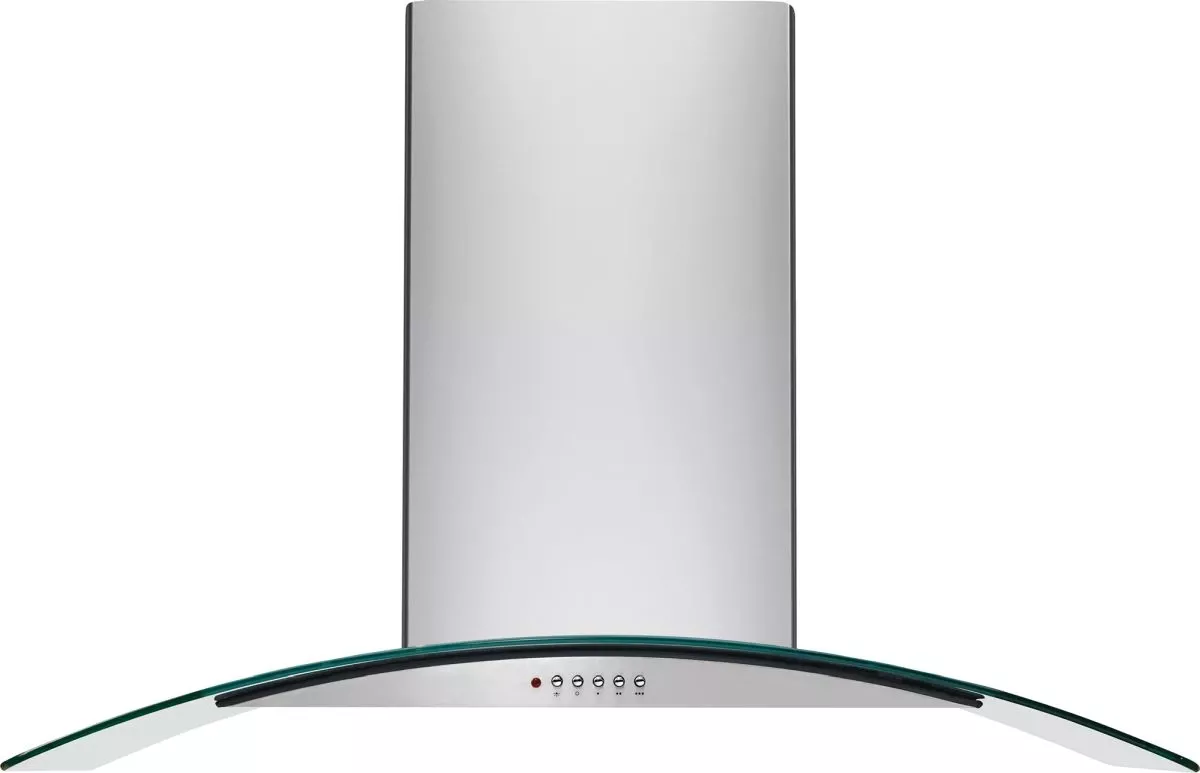

| Style: | Stainless Steel/ Glass Canopy |
