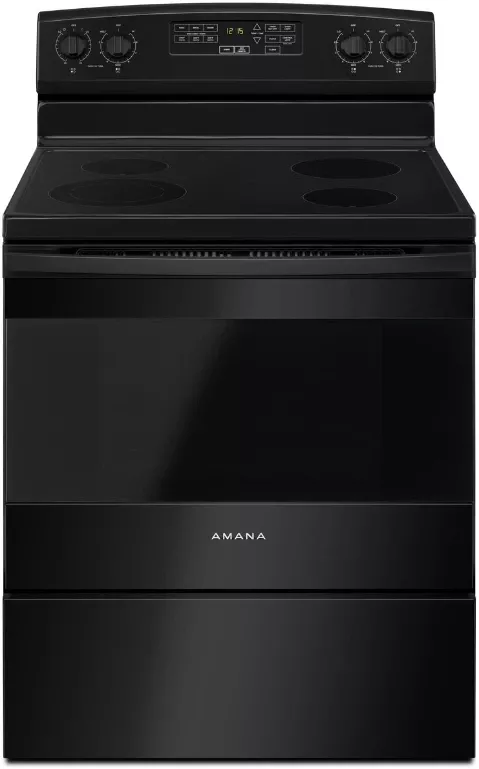

Product Overview
Large Oven Capacity (4.8 Cu. Ft.)
Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Versatile Cooktop
Our Versatile Cooktop with multiple element options provides up to 2,100 watts to help you cook more of your favorites at the same time.
Bake Assist Temps
Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Easy Touch Electronic Controls Plus
Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Temp Assure™ Cooking System
Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Extra-Large Oven Window
See and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
Storage Drawer
This storage drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
Storage Drawer
This storage drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
Warm Hold
Warm Hold delivers low heat to the oven so dishes are ready to serve when you are.
Oven Lockout
Oven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
Indicator Lights
Check your oven’s status and settings at a glance with the Indicator Lights.
Custom Broil
Use this setting to broil in five degree-increments to melt cheese, sear steak or toast those buns with more precision.
Self-Clean Option
There’s no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.
Contemparary Design
With clean lines and modern finishes, our line of free-standing ranges lets you easily choose the features and design details that best fit your budget and lifestyle
Useful Documents
Owners ManualWarrantySpecification SheetQuick Start GuideInstallation InstructionsDimension Guide
Specifications
General Specs |
|
| Color | Black |
| Color/Finish Name | Black |
| Door Color | Black |
| Handle Color | Black |
| Total Capacity (cu. ft.) | 4.8 |
| Number of Oven(s) | Single |
| Fuel Type | Electric |
| Door Panel Type | Glass |
| Range Type | Freestanding |
| Number of Elements/Burners | 4 |
| Cooktop Surface | Glass Top |
| Oven Cleaning Method | Self Cleaning |
| Oven Features | Broiler in Oven |
| Cooktop Features | Indicator Light – Hot Surface, Indicator Light – Hot Element On |
| Induction Cooking | No |
| Appliance Fit Width (in.) | 30 |
| Width (in.) | 29.88 |
| Height (in.) | 46.88 |
| Depth (in.) | 27.75 |
| Depth w/Door Open 90 Degrees (in.) | 46.69 |
| Cut Out Depth (in.) | 24 |
| Cut Out Width (in.) | 30 |
| Cut Out Height (in.) | 36 |
| Made In The USA | Yes |
| Made In | USA |
| Manufacturer Warranty | 1 Year Parts & Labor |
| ADA Compliant | No |
| Voltage | 120 |
| Amp | 40 |
Certifications |
|
| UL | Yes |
Cooktop Details |
|
| Cooktop Control Knob Color | Black |
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Porcelain Coated Steel |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
Exterior Details |
|
| Door Type | Glass Window |
| Handle Type | Towel Bar |
| Knob Color | Black |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Extra Large |
Oven Cavity Details |
|
| Bake Element Power | 2,400 W |
| Broiler Element Power | 3,400 W |
| Broiler Location | Top of Oven |
| Convection Element Type | None |
| Convection Functions | No |
| Door Removable | Yes |
| Hidden Bake Element | No |
| Interior Color | Grey |
| Natural Gas Convertible | No |
| Number of Oven Lights | 1 |
| Oven Cleaning Type | Adjustable Self Cleaning |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | Oven Control |
| Incandescent | Incandescent |
| Oven Rack Type | Standard |
Additional Dimensions |
|
| Common Size | 30 in |
| Depth Closed Excluding Handles | 25.31 in |
| Maximum Height | 47.88 in |
| Minimum Height | 46.88 in |
| Oven Interior Depth | 18.5 in |
| Oven Interior Height | 18.13 in |
| Oven Interior Width | 24.5 in |
Details |
|
| Fuel Type | Electric |
| LP Convertible | No |
| Natural Gas Convertible | No |
| Oven Configuration | Single Oven |
| Oven Selections | Audible Signal, Clock, Control Lock, Sabbath Mode, Timer, Warm Hold |
| Power On Indicator Light | Yes |
| Range Configuration | Freestanding |
Element/Burner Details |
|
| Cooktop Element Style | Smoothtop |
| Left Front Element-Burner Power | 3000W/1400W |
| Left Front Element-Burner Size | 9in./6in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Power | 1,200W |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Radiant |
| Right Front Element-Burner Power | 1200W |
| Right Front Element-Burner Size | 6in. |
| Right Front Element-Burner Type | Radiant |
| Right Rear Element-Burner Power | 1,800W |
| Right Rear Element-Burner Size | 8in. |
| Right Rear Element-Burner Type | Radiant |
Controls |
|
| Display Color | Green |
| Electronic Display Type | LED |
Electrical |
|
| Power Cord Included | No |
